MAC 1020 CR

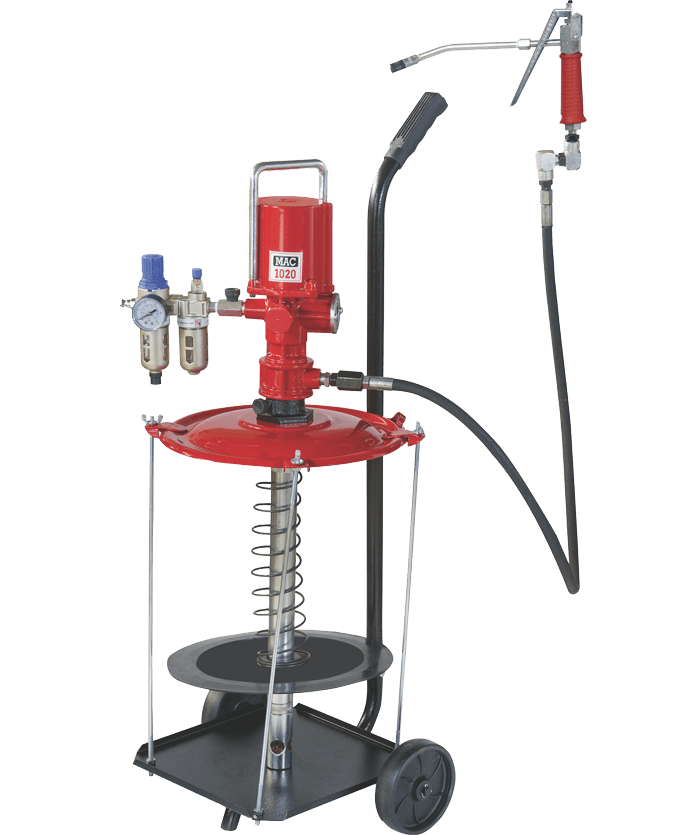

Pneumatic Grease Pump for 20kg bucket with cart
For lubrication of equipment for Industrial, Agricultural, Lubrication Trucks and Service Centers. Using only one person to carry out the lubrication process.
Pneumatic Grease Pump for 20kg bucket with cart
For lubrication of equipment for Industrial, Agricultural, Lubrication Trucks and Service Centers. Using only one person to carry out the lubrication process.
Materials
Made of Carbon Steel, Injected Aluminum, Rubber and Polyurethane.
Finish
Red paint with laminated labels (Check availability in blue and green colors).
Capacity
Used with 20kg buckets.
Flow rate
Approximately 500g/minute.
Outlet pressure
4,000 to 5,000 psi (approximately 270 to 345 bar).
NCM
8479.89.99
Weight with 10 meter hose
15.20 kg.
Weight without hose
10.20 kg.
Dimensions
W=35 X L=106 X D=22.
Packaging
1 box (36A X 106L X 23D).
Distribuidor
Com função de regular a entrada e saída de ar. Composto de alumínio, aço inoxidável e latão
Compactor Cover
in polyethylene with spring
Guia de entrada
High resistance carbon steel inlet guide
Lubrifil Set
Air filter and pressure regulator
Hydraulic Hose
two high-pressure resistant steel meshes available in sizes:
5m (ML1006.0000)
10m (ML1007.0000)
15m (ML1008.0000)
Z Swivel Connection
(code: ML1132.0000)
Grease Command
(code: ML1130.0000)
Lubrifil Assembly
(code: ML1002.1064)
Compactor Kit
(code: ML1020.1500)
Transport trolley
carbon steel and electrostatic paint
(code: ML0000.1020)
Mac Lub currently has a high-tech manufacturing unit, installed in an area of 4,900 m2. The production processes go through strict quality control that result in the total guarantee in the manufactured products.
Repairs
Allows the change of the repairs of the packing items of the pump.
Operation
Propulsora pneumática com deslocamento da graxa pelo acionamento do pescador
Mobilidade
Por possuir carrinho , pode ser utilizada em diversos ambientes para lubrificação
Know Our History
We provide solutions for the lubrication and diesel market.
Mac Lub Pneumatic Grease Maintenance
Pneumatic Grease Maintenance Mac Lub
Always use clean grease free of impurities. Check if the hose has something bent that could affect the passage of the product. Always fill the reservoir in a clean place to avoid contamination. Always use Mac Lub repair parts.
